Flashlight integrated telescopic pole mast-Electric portable lift pole
June 17,2022
Compared with similar products, the WX series lifting mobile lightning arrester has the characteristics of fast lifting speed, high reliability, strong durability, safety and stability, lightweight, small closing height, and easy to carry.
There are two types of lifting methods: manual and electric. The vehicle-mounted lightning rod lightning protection device can lift the height of 3-30 meters, the closing height is 1.2-5 meters, and the weight of the main pole is 15Kg-85Kg. It is widely used in emergency lightning protection for troops, fire fighting, communication vehicles, drill vehicles, special vehicles, photovoltaic power stations, military drill grounds, ships, field construction, coal mines, metal mines, railways, electric power, large-scale cultural and sports activities, disaster relief, etc. The use of lift-type mobile lightning arresters can also make installation and maintenance work safer and more convenient.

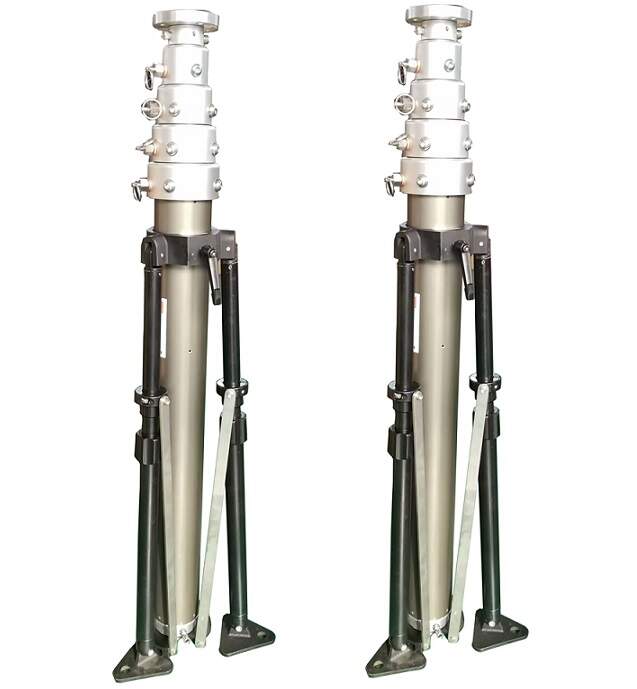

Installation and use of IA type and IB type lifting rod

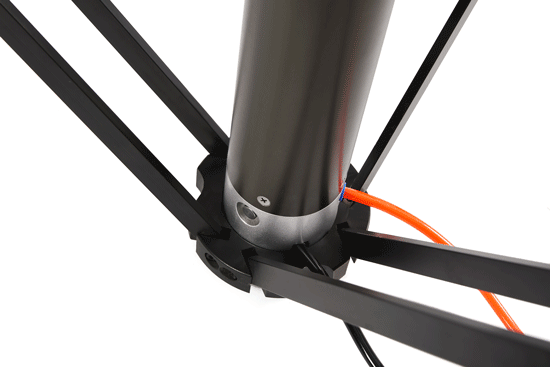

1) Make the position of the manual shaft in the middle of the two legs, there are three butterfly screws on the outer circumference of the round hole, tighten them, and connect the rod body and the tripod into one.
2) Adjust the rod body vertically: there is an adjustment screw and an adjustment nut under the outriggers. Loosen the adjustment nut. Turn the adjustment screw to make the rod body vertical and then tighten the adjustment nut.
Note: The longest adjustment screw can only be adjusted out 60mm
3) The hand crank is inserted into the manual shaft. When the hand crank is moved clockwise, the lift rod goes up, and counterclockwise goes down.
4) The height of the two types of lifting poles is not more than 6m. If it reaches 6m and the load is greater than 15kg, or the wind force is greater than 10m/s, you need to add a cable. Whether to add a cable is determined by the user as the case may be. For the use of the cable, see the introduction of the IIA ground type.
Installation and use of type IIA lifting rod
1.The ground installation and use of the IIA type lift rod (see the installation and use of the cable system),
2.Installation and use of type IIA lift rod outside the vehicle
1) Determine the installation position and install the bottom bracket. The plane of the bottom bracket is parallel to the axis of the vehicle. The area should be equal to the area of the bottom plate of the rod body. It is fixed to the bottom bracket through the 4 holes on the bottom plate of the rod. So that the hand crank has room to rotate.
2) Determine the installation position of the hoop according to the axis of the lifting rod fixed pipe and the corresponding axis of the hoop. The hoop and the fixed pipe are equipped with 2mm thick tape to install the hoop.
3) The distance between the center of the hoop and the fixed tube provided by the factory and the center of the plane of the hoop bottom plate (the surface that fits with the body) is equal to half the size of the bottom plate of the dry lift rod. If the outside of the car should be compensated by padding.
1. Compared with foreign products of the same type, it has a higher cost performance;
2. All transmission systems are closed, with good waterproof and sand-proof performance and strong anti-corrosion ability;
3. The rod body is made of finely drawn aluminum alloy material, and the drawing process and precision are the highest in China;
4. The movement between the rod body and the rod body is not in direct contact, which ensures the anti-corrosion ability of the surface of the rod body (the surface of the aluminum alloy is hard anodized);
5. The rise and fall of the rod body are linked, and the descending of the rod body is pulled down by the internal steel wire, which solves the problem that the traditional lifting rod cannot descend under its own weight;
6. The product has passed the environmental test in line with the national military standard GJB150 (mold, salt spray, temperature alternating, high and low temperature work, high and low temperature storage, vibration, rain, sports car test);
7. The design life of the product is 20 years, the maintenance is simple and the reliability is high, and the product has a sufficient safety factor (100% of all products are tested before leaving the factory and a factory test report is provided);
