12m to 15 meter ham radio antenna and wind turbine used electric operated extendable telescoping mast
Quick Details
OEM：
Refuse
Sample:
Available
Port:
China main port
Payment:
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Support Express · Sea freight
Supply Ability：
200 set per month
Quick Details
- ColorMilitary Green
- Extended Heigth15m
- Materialaluminium alloy
- Mountedon the ground or vehicle
- Top payload50KG
- Noisebelow 50DB
- Retracted Height2.95m
Shipping fee
Shipping fee

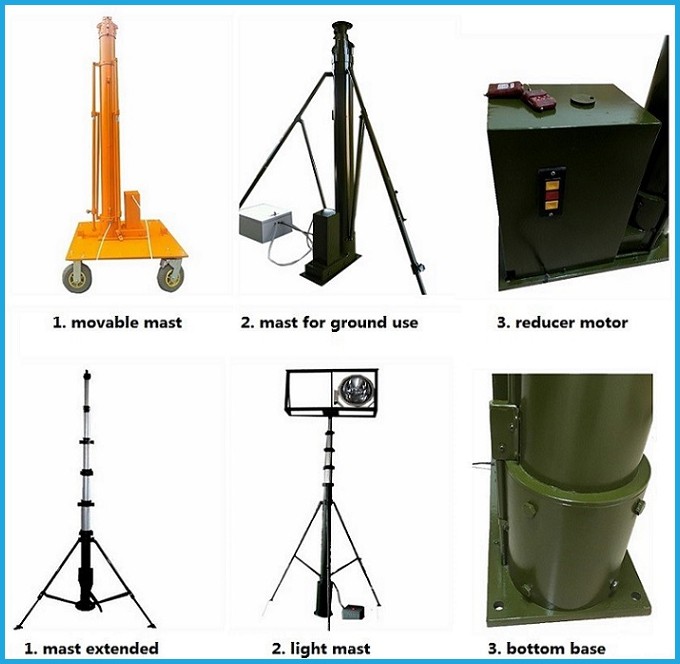

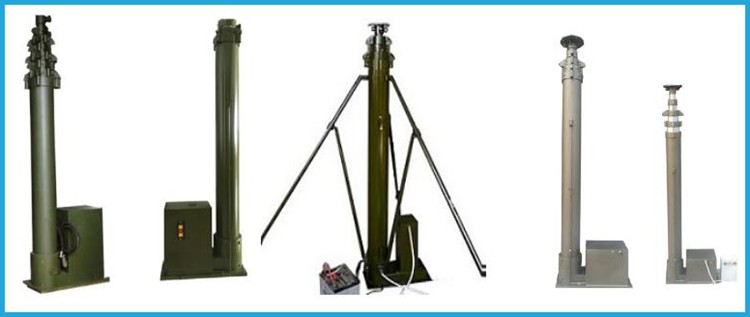

1. we develop and manufacture telescopic masts,
material is aluminum allo or steel,for nearly unlimited applications,
material is aluminum allo or steel,for nearly unlimited applications,
it's used in radio facilities,for monitoring and illumination systems in public works and
military installations, for radio amateurs, in metrology, emergency lighting, antenna
and mobile communication fields.
In addition, we are able to offer special solutions for non-standard applications.
2.especially our motorized mast has same advantages as
manual telescopic mast, it can be operated electrically
or manually, and it can be self-locking at any position.
2.especially our motorized mast has same advantages as
manual telescopic mast, it can be operated electrically
or manually, and it can be self-locking at any position.
A. 1 year warranty

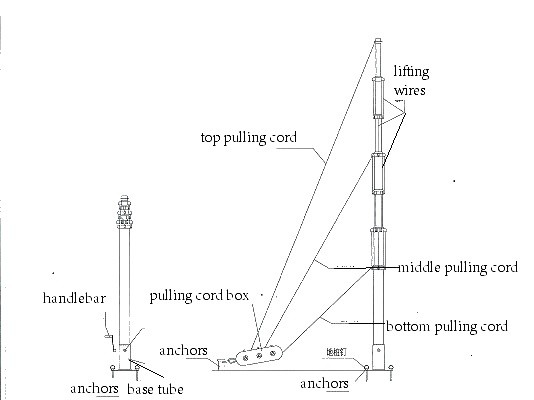

B. Installation Instructions:

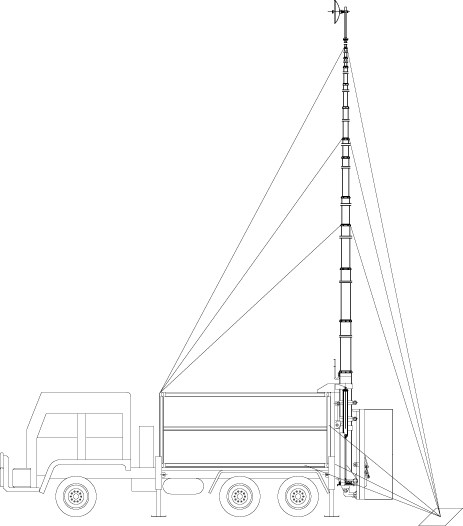

1.if mount on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if motorized mast hitting one ground anchor per 120 degrees.
3.Mount lifting handle bar or remote-controller to raise up motorized mast
1.if mount on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if motorized mast hitting one ground anchor per 120 degrees.
3.Mount lifting handle bar or remote-controller to raise up motorized mast
C. Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
it's better mobil 0W-20 oil
3.Regularly check the connection parts in normal condition.
3.Regularly check the connection parts in normal condition.
