6m 8m 10m 12m 20m street pole telescopic cctv aerial camera mast
- Extended Height6.0m
- Retracted Heigth1.75m
- Materialaluminium alloy
- Lifting stylePneumatic
- Max.payload15KG
- ApplicationEmergency Lighting, Military, Antenna, Mobile Communication
- Accessoriestripod,guying wire box,anchors and lifting bars
Pneumatic Mast payloads up to 400kg
Our telescopic masts can be used for many different applications,
ideal for fire- fighting, telecommunications, military, surveillance and photography fields.
Vehicle-mounted and ground use heavy-duty models up to 32 m,
More than 500 different models can be offered,
Customized electric cable, locking and non-locking system suitable for different application
Common application
Military communications, elevated testing and mobile radar applications....and so on.
Mast specification
Available Extended height:2m to 30m
Head load capacity:5kg to 500kg.
Lift operation choose
If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.
If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.
|
package
|
|||
|
carton packed
|
normal package is carton for the extended height less than 9m, weight less than 70kg mast, also can be plywood case at customers request
|
||
|

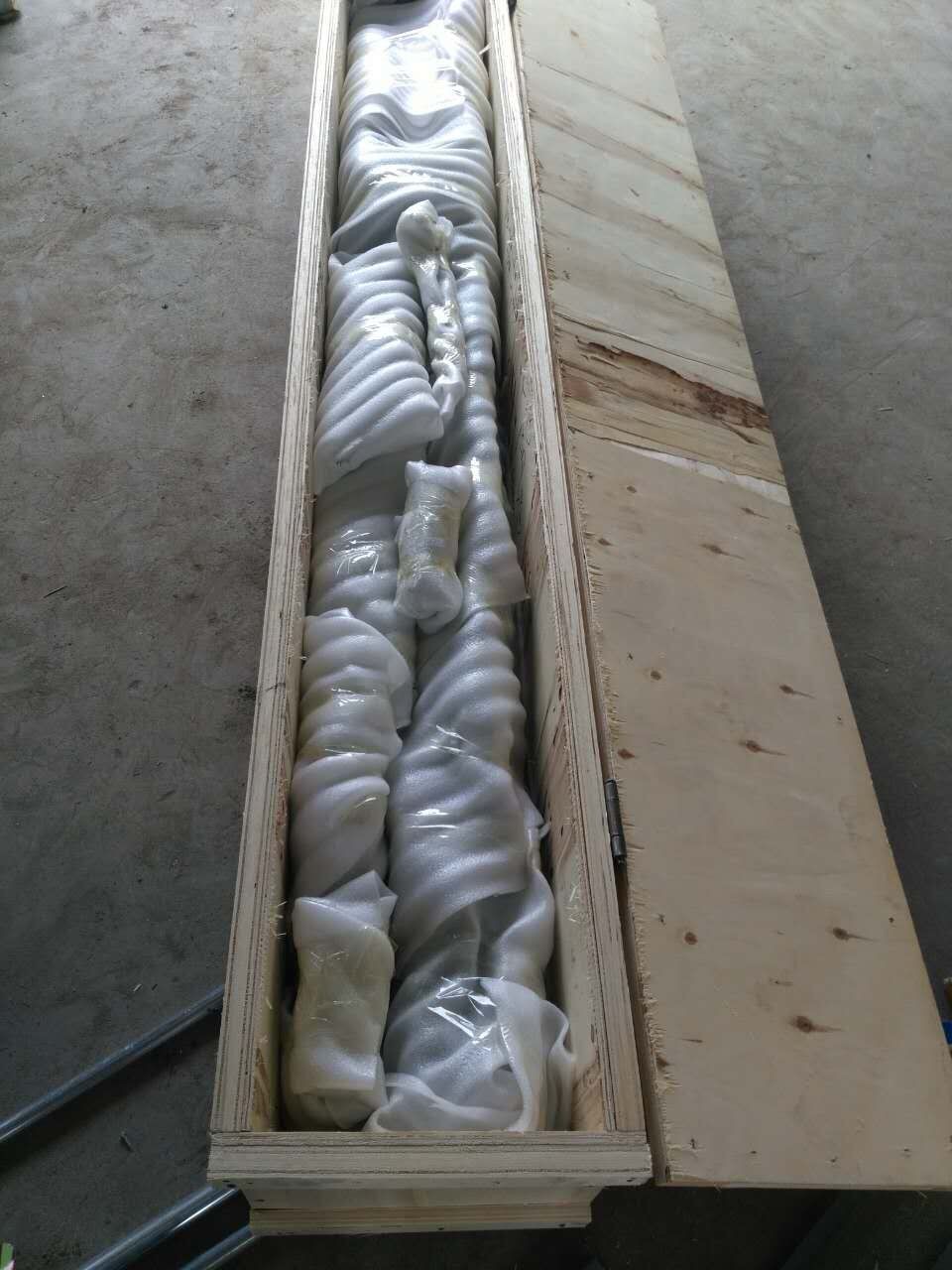

plywood packed
|
normal package is plywood case for extended height more than 10m, weight more than
70kg mast
|
||
Operation steps
2.fixed the mast on the ground. tripod and guy wire fixed diameter
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.
9. when lift down the mast, please pull down the lifting control valve handle bar..
Acessories
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Avaible for indoor or outdoor?
A5: indoor/ outdoor both are avaible,
Q6: Do we accept OEM/ ODM?
A6: Yes
